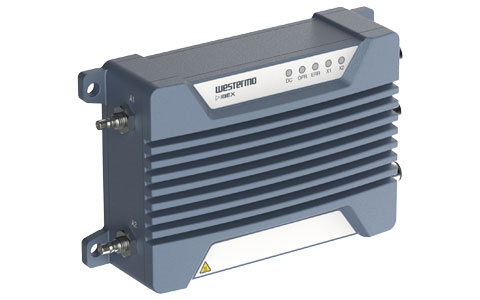

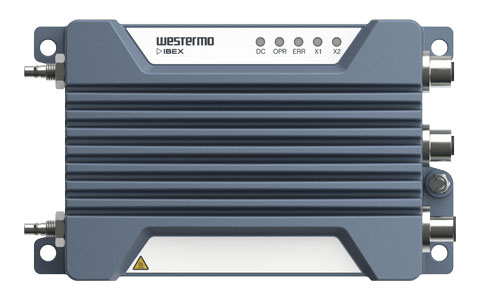

Ibex-RT-220是用于车载和固定应用的无线局域网节点。
它确保了应用的可靠连接例如视频传输和TCMS,特别适用于具有自动重新配置功能的透明内部一致性链路(ICL)。
Ibex-RT-220和专用ICL天线设计用于承受列车上的恶劣环境,将设备暴露在持续振动、极端温度、湿度和苛刻的电磁环境中。
校准无线电模块,以确保高射频灵敏度(即使在高数据速率/调制下)、稳定的射频链路和优化的DFS即使在通信中断的情况下,它也能保持高速数据传输速率和与工业无线客户端的可靠连接,即使距离增加。
GORE-TEX® 薄膜可防止内部冷凝。所有接口之间的高水平隔离可实现与车辆辅助电源的直接连接,并可防止过压和尖峰/浪涌。
IP66 防护可防止即使在快速连接QMA连接器上,水和灰尘也不会进入。
整体优化的设计使外形紧凑,同时具有很高的MTBF,易于集成到空间中限制和室外安装以及低生命周期成本。在独立实验室进行的彻底型式测试证明其符合各种标准,尤其是EN 50155、FCC和EN 300 440(后者为在欧盟地区使用5.8 GHz频段提供了可能性)。
满足铁路和信号市场的要求,Ibex-RT-220非常适合部署在任何其他适用于恶劣的操作条件和恶劣的环境,例如采矿和航运业。
尺寸 | 176 x 52 x 110 mm (6.93 x 2.05 x 4.33 inches) |
材质 | 全金属外壳 |
重量 | 1.1Kg |
工作温度 | -40 至 +70°C (-40 to 至158°F) |
防护等级 | IP66 |
MTBF | 400,000小时 |
工作电压 | LV: 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device HV: 72 to 110 VDC isolated, 0.2 A max. |

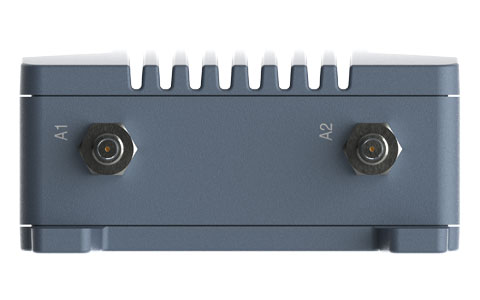

射频口 | 2 x QMA compatible antenna connectors, 2x2 MIMO |

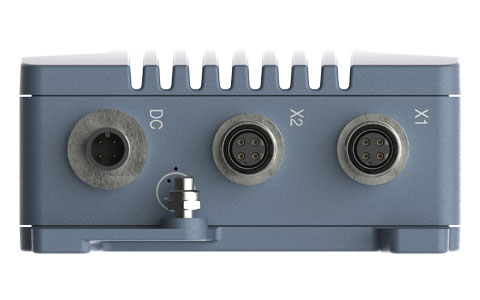

网口 | 2 x 10/100 Base-T with 2 x M12 D-codec connectors |
标准 | IEEE 802.11b 802.11g 802.11a 802.11n |
Data rates supported | 802.11b: 1 Mbit/s, 2, 5.5 and 11 Mbit/s 802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS15 130/144.4 Mbit/s 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS15 270/300 Mbit/s |
射频功率 | 2.4GHz:Max. conducted transmit power, 802.11b/g/n: 1 port: +12 dBm for all data rates, 2 ports: +15 dBm for all data rates 5 GHz:Max. conducted transmit power, 802.11a/n: 1 port: +15 dBm for all data rates ,2 ports: +18 dBm for all data rates |
安全连接协议 | WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r |
Ethernet routing/ networking and VPN | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server, Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode,Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
