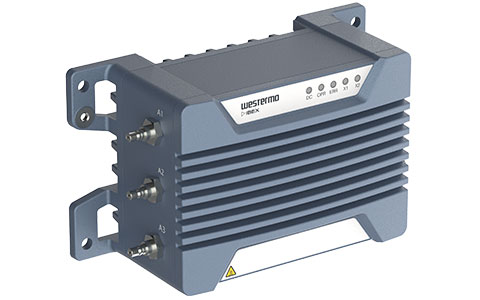

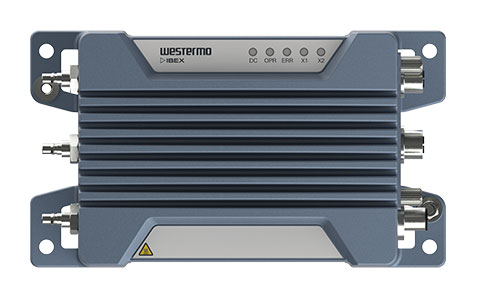

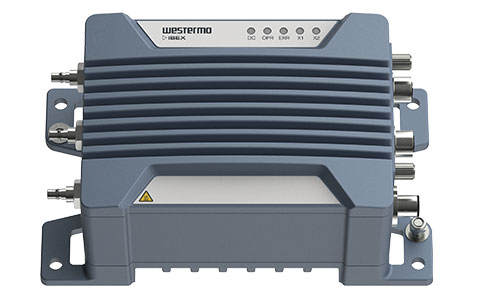

The Ibex-RT-330 is a mobile LTE router for onboard usage in trains, trams, locomotives and busses. The Mobile Communication Gateway (MCG) router is designed to withstand the tough onboard environmental conditions and can be remotely managed using web browser or SNMP management tools. The MCG provides advanced firewall functionalities and high-performance VPN connectivity.
The router exceeds the high requirements for the most bandwidth-demanding applications worldwide and features global LTE bands to support all current, as well as future, frequencies. A compact design enables quick and easy installation into the tight spaces of trains, while configuration and unit replacement are simplified by a SIM card memory for configuration parameters. Dual SIM allow for further performance optimisations and carrier redundancy. IP66-rating and a wide temperature range from -40 °C to +70 °C ensure that the devices can be installed virtually anywhere, without the need of additional protection.
Meeting the requirements of the rail market, Ibex-RT-330 is very well-suited for any deployment in challenging environments such as mining and industrial vehicle automation.
| 尺寸 | 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches) |
| 材质 | 全金属外壳 |
| 重量 | 1.54Kg |
| 工作温度 | -40 至 +70°C (-40 to 至158°F) |
| 防护等级 | IP66 |
| MTBF | 360,000小时(IEC 62380) |
| 工作电压 | LV: 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device HV: 72 to 110 VDC isolated, 0.2 A max. |
| 射频口 | 2 x QMA compatible connectors for LTE 1 x QMA compatible connector for GNSS |
| 网口 | 2 x 10/100/100 Base-T with M12 X-codec connectors |
| SIM卡 | 2 x mini-SIM |
| 移动射频端口 | 2x2 MIMO LTE-A Cat 12, 3GPP E-UTRA Release 12 |
| Mobile frequency bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B26/B28/B29/B30/B32/B66 LTE-TDD: B38/39/B40/B41 WCDMA Band: B1/B2/B3/B4/B5/B8/B9/B19 |
| LTE-A carrier aggregation | DL 2CA: B1+3/5/18/19/20/26; B2+2/4/5/12/13/17/29/30/66; B3+3/5/7/8/19/20/28; B4+4/5/12/13/17/29/30; B5+7/30/66; B7+7/20/28; B12+30; B13+66; B19+21; B20+B32; B29+30; B38+38; B39+39; B39+39; B39+41 B40+40; B41+41; B66+66;12,29,30,5; B2+B14;B14+B30;B14+B66; (Note: B29, B32 only for secondary component carrier) DL inter-band 3CA: B1+3+5/7/8/19/20/28; B1+7+20, B2+4+5,B2+4+13, B2+5+30, B2+12+30, B2+29+30, B3+7+20, B3+7+28 , B3+7+8, B4+5+30, B4+12+30, B4+29+30, B5+66+2, B13+66+2, B66+12+30, B66+29+30, B66+5+30; B2+B14+B66 DL 2 intra-band plus inter-band 3CA: B2+2+5, B2+2+13, B3+3+7, B3+7+7, B3+3+20, B3+3+28,B3+3+1, B4+4+5, B4+4+13, B7+7+28, B5+66+66, B13+66+66, B66+66+2, B39+B39+B41; B39+B41+B41; B14+B66+B66 DL 3 intra-band 3CA: B40+40+40, B41+41+41, B66+66+66 UL Intra-band Continuous 2×CA: B3+3; B7+7; B38+38; B40+40; B41+41 |
| 移动数据速率 | LTE-FDD: Max 600 Mbps (DL)/Max 150 Mbps (UL) – DL 256QAM / UL 64QAM; LTE-TDD: Max 430 Mbps (DL), Max 30 Mbps (UL); DC-HSDPA: Max 42 Mbps (DL); HSUPA: Max 5.76 Mbps (UL); WCDMA: Max 384 Kbps (DL), Max 384 Kbps (UL) |
| GNSS | GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C, D-GPS |
| 安全连接协议 | 802.1X |
Ethernet routing/ networking and VPN | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
Dual SIM support
Worldwide LTE-A and UMTS/HSPA + coverage
Compact design with M12 interfaces
