产品描述

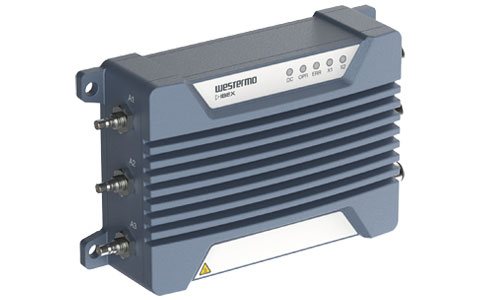

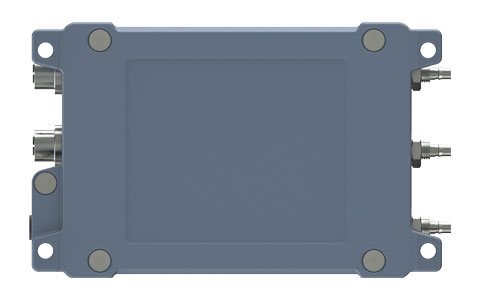

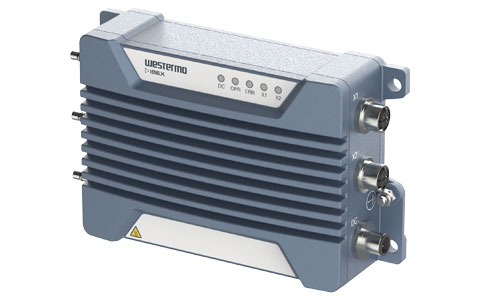

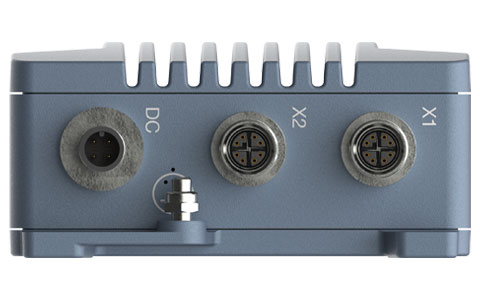

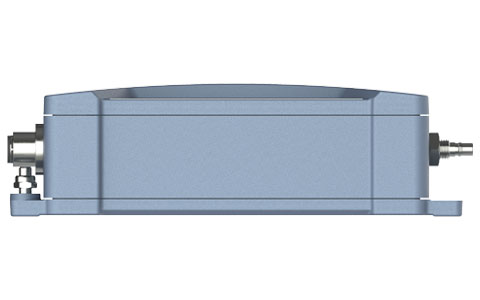

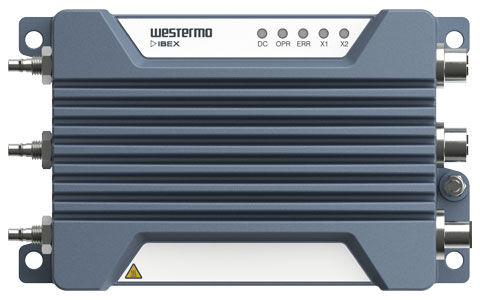

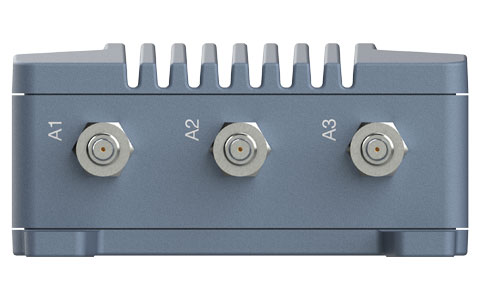

The Ibex-RT-320 series is a Wireless LAN node for on-board and stationary applications. It ensures reliable, high-speed data and can be used as passenger hotspots or as access points for connecting wireless industrial clients. The Ibex-RT-320 series is designed to withstand the tough environment on-board trains, exposing the access point to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment. The high-end RF circuitry is designed and calibrated to ensure fast hand-off, high RF sensitivity even at high data rates/ modulations, stable RF links, optimized DFS handling, etc. The device comes with a high power radio interface calibrated to ensure high output power and excellent receiver sensitivity. A GORE-TEX® membrane prevents internal condensation. High-level isolation between all interfaces enables direct connectivity to vehicle auxiliary power and protects against overvoltage and spikes/surge. IP66 protection prevents ingress of water and dust even at the quick connect QMA connectors. An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration in space restricted installations and low lifecycle cost. Thorough type testing at independent labs certifies the compliance to a wide range of standards, not least EN 50155 and FCC and EN 300 440 (the latter opening the possibility to use the 5.8 GHz band in the EU region). Meeting the requirements of the railcar market, the Ibex-RT-320 series is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining or shipping industry.
