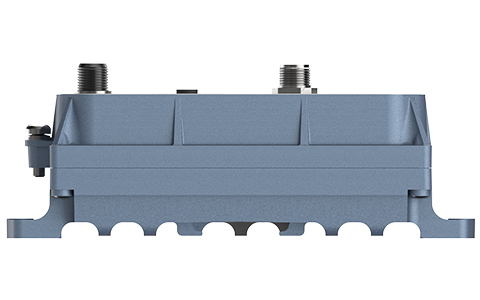

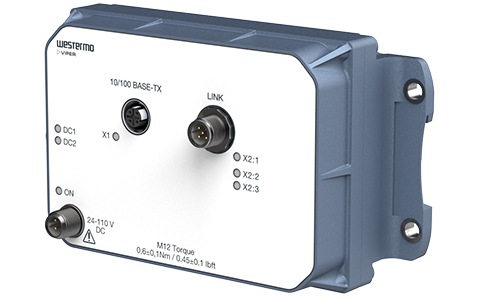

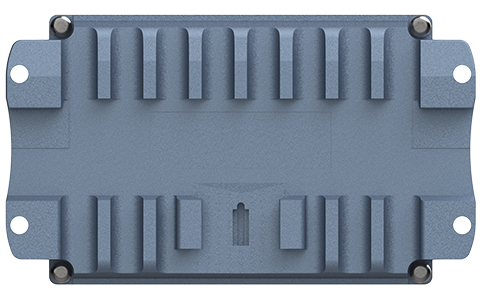

非网管型工业级交换机Viper-002-PL
Viper-002是Westermo以太网系列中的百兆1端口转电源线中继器。
具备以下优点:
… Compact basic rail-approved Ethernet switch
• Fully EN 50155 compliant
• Single model 24 – 110 VDC power range
• 1 x 100 Mbit/s Ethernet ports
… Externally tested and verified to EN 50155
• Surge resistance and isolation
• Magnetic field immunity & conducted emission
• Shock and vibration
… Designed for long life and extreme operational environments
• IP65 anti-condensation GORE-TEX® membrane
• Ambient temperature -40°C (-40°F) to +70°C (+158°F)
• Integrated M12 threading and extremely high MTBF, 1,289,000 hours
… Design and production testing to match requirements for train control
• Post production testing exceeding EN 50155 mandatory requirement
• Isolation test on all units
• Manufactured according to IPC-A-610D class2
标准 | IEEE8023u100Base-Tx IEEE 802.310Base-T 工业级非网管型交换机 |
环境 | |
电源 | 额定电压: 24 to 110 VDC 工作电压:16.8 to 143 VDC (14.4 to 154 VDC for 100 ms) 额定电流:110 mA @ 24 VDC 33 mA @ 110 VDC |
