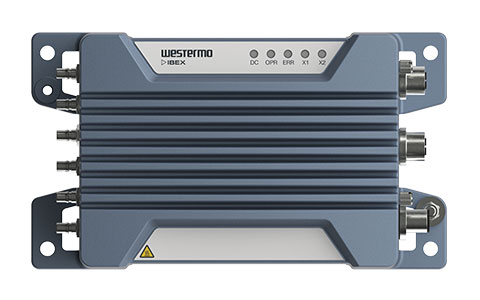

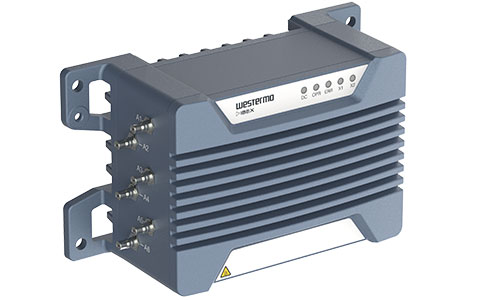

Ibex-RT-630是一款移动LTE和WLAN路由器,适用于火车、有轨电车、机车和公共汽车的车载使用。Ibex RT-630提供卓越的性能和坚固的互联网连接备份,可通过单个设备实现列车到地面的混合安装。移动通信网关(MCG)路由器设计用于承受恶劣的板载环境条件,并且可以使用web浏览器或SNMP管理工具进行远程管理。MCG提供高级防火墙功能和高性能VPN连接。
该路由器超过了全球对带宽要求最高的应用程序的高要求,并具有全球LTE频段,可支持所有当前和未来的频率。紧凑的设计使其能够快速轻松地安装到列车的狭小空间中,同时配置和单元更换通过用于配置参数的SIM卡存储器简化。双SIM卡可进一步优化性能和实现运营商冗余。IP66等级和-40°C至+70°C的宽温度范围确保设备几乎可以安装在任何地方,而不需要额外的保护。
Ibex-RT-630满足铁路市场的要求,非常适合在采矿和工业车辆自动化等具有挑战性的环境中进行任何部署。
尺寸 | 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches) |
材质 | 全金属外壳 |
重量 | 1.65Kg |
工作温度 | -40 至 +70°C (-40 to 至158°F) |
防护等级 | IP66 |
MTBF | 290,000小时 |
工作电压 | LV: 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device HV: 72 to 110 VDC isolated, 0.2 A max. |
射频口 | 3 x QMA compatible connectors for WLAN 2 x QMA compatible connectors for LTE 1 x QMA compatible connector for GNSS |
网口 | 2 x 10/100/1000 Base-T with 2 x M12 X-codec connectors |
SIM卡槽 | 2 x mini-SIM |
标准 | IEEE802.11b, 802.11g, 802.11a, 802.11n |
Data rates supported | 802.11b: 1 Mbit/s, 2, 5.5, and 11 Mbit/s 802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS23 195/216.7 Mbit/s 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS23 405/450 Mbit/s |
射频功率 | 2.4GHz:Max. conducted transmit power, 802.11b/g/n: 1 port: +22 dBm for all data rates 2 ports: +25 dBm for all data rates 3 ports: +27 dBm for all data rates 5150 to 5350 GHz:Max. conducted transmit power, 802.11a/n: 1 port: BPSK, QPSK and 16QAM: +22 dBm, 64QAM: +20 dBm 2 ports: BPSK, QPSK and 16QAM: +25 dBm, 64QAM: +23 dBm 3 ports: BPSK, QPSK and 16QAM: +25 dBm, 64QAM: +25 dBm 5470 to 5850 MHz:Max. conducted transmit power, 802.11a/n: 1 port: +22 dBm for all data rate 2 port: +25 dBm for all data rates 3 port: +27 dBm for all data rates |
安全连接协议 | WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r |
Ethernet routing/ networking and VPN | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server, Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode,Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
