Ibex-RT-610由用于车载和固定应用的并行双频802.11ac Wave2无线局域网接入点组成。它们可确保可靠、高速的数据、广播时间公平性、频带控制、客户端控制，并可用作乘客热点或连接无线工业客户端的接入点。
Ibex-RT-610设计用于承受列车上恶劣的环境，使接入点暴露在持续的振动、极端的温度、湿度和苛刻的电磁环境中。
GORE-TEX®薄膜可防止内部冷凝。所有接口之间的高水平隔离使车辆能够直接连接到辅助电源，并防止过电压和尖峰/浪涌。IP66防护可防止水和灰尘进入，即使在快速连接QMA连接器处也是如此。
整体优化的设计带来了紧凑的外形尺寸和极高的MTBF，便于在空间有限的安装中集成，并降低了生命周期成本。
在独立实验室进行的全面型式测试证明其符合广泛的标准，尤其是EN 50155和FCC。
满足轨道车市场的要求，Ibex-RT-610非常适合部署在任何其他具有恶劣操作条件和恶劣环境的应用中，例如采矿或航运行业

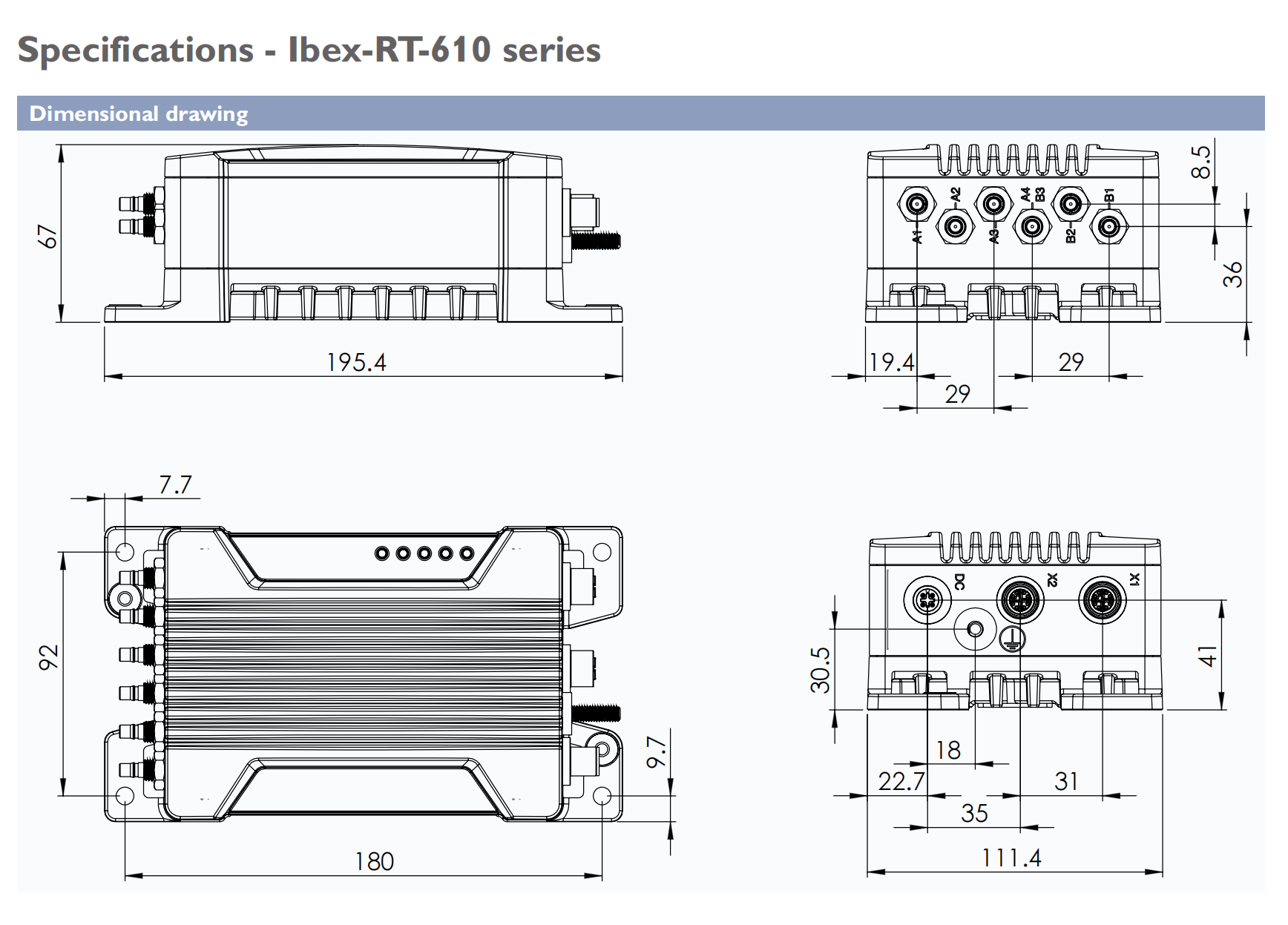

| 尺寸 | 195.4 x 67 x 111.4 mm (7.69 x 2.64 x 4.39 inches) |
| 材质 | 全金属外壳 |
| 重量 | 1.45Kg |
| 工作温度 | -40 至 +70°C (-40 to 至158°F) |
| 防护等级 | IP66 |
| MTBF | 420,000小时 |
| 工作电压 | LV: 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device HV: 72 to 110 VDC isolated, 0.2 A max. |
| 射频口 | 4 x QMA compatible antenna connectors, 4x4 MU-MIMO for 5GHz 2 x QMA compatible antenna connectors, 2x2 MIMO for 2.4GHz |
| 网口 | 2 x 10/100 Base-T with 2 x M12 D-codec connectors |
| 标准 | IEEE802.11g, 802.11a, 802.11n, 802.11ac |
| Data rates supported | 802.11a/g: 6Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS23 195/216.7 Mbit/s 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS23 405/450 Mbit/s 802.11ac 20 MHz BW, LGI/SGI: from VHT0 6.5/7.2 Mbit/s to VHT9 312/346.7 Mbit/s 802.11ac 40 MHz BW, LGI/SGI: from VHT0 13.5/15 Mbit/s to VHT9 720/800 Mbit/s 802.11ac 80 MHz BW, LGI/SGI: from VHT0 29.3/32.5 Mbit/s to VHT9 1560/1733.3 Mbit/s 802.11ac 160 MHz BW, LGI/SGI: from VHT0 58.5/65 Mbit/s to VHT9 1560/1733.3 Mbit/s (2SS) |
| 射频功率 | 2.4GHz：Max. conducted transmit power, 802.11a/n/ac, up to +18 dBm for all data rates 5 GHz：Max. conducted transmit power, 802.11a/n/ac, up to +18 dBm for all data rates |
| 安全连接协议 | WPA2-Personal (CCMP), WPA2-Enterprise, WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X |
Ethernet routing/ networking and VPN | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server, Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode,Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
Compact WLAN node
Designed and built for operational environments
IEEE802.11ac Wave2 for maximum capacity
