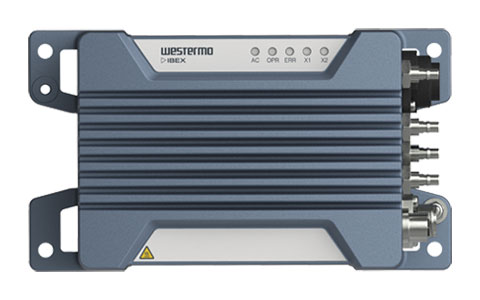

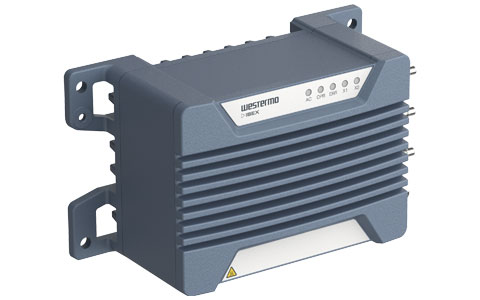

Ibex-RT-370 is a Wireless LAN Infrastructure Access Point for industrial or trackside network infrastructure. It ensures reliable, continuous high-speed connection to industrial wireless clients.
Ibex-RT-370 is designed to withstand the tough environment in, for instance, trackside applications, exposing the access point to constant vibration, extreme temperatures, humidity and a demanding electromagnetic environment.
A GORE-TEX® membrane prevents internal condensation and high-level isolation protects against overvoltage and spikes/ surges. Ibex-RT-370 comes with built-in 100-240 VAC mains power supply and IP66 environmental protection for water and dust, further simplifying installation and reducing external component needs. N-type radio connectors allow direct connectivity of thick low-loss feeder type RF cables.
The device comes with a high power radio interface calibrated to ensure high output power and excellent receiver sensitivity. It maintains high-speed data rates and reliable connection to industrial wireless clients even if the communication distance is increased.
Ibex-RT-370 provides an additional monitoring interface for out-of-band radar detection and monitoring, allowing surrounding WLAN devices and other interferences along the whole frequency band can be monitored, without adversely affecting the communication performance. Due to this, the device provides uninterrupted operation also on 5 GHz outdoor bands with radar detection (DFS) requirements.
An overall optimised design results in a compact form factor in combination with very high MTBF for easy integration and low lifecycle cost. Thorough type testing at independent labs certifies the compliance to a wide range of standards, including FCC.
Meeting the requirements of the railway and signalling market, Ibex-RT-370 is very well suited for deployment in any other application with severe operating conditions and tough environments, for instance in the mining and shipping industry.
尺寸 | 195.4 x 87 x 111.4 mm (7.69 x 3.42 x 4.39 inches) |
材质 | 全金属外壳 |
重量 | 1.75Kg |
工作温度 | -40 至 +70°C (-40 to 至158°F) |
防护等级 | IP66 |
MTBF | 240,000小时 |
工作电压 | 100-240 VAC, 0.2 A, 50-60 Hz |

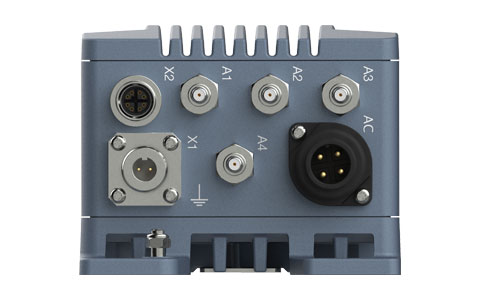

射频口 | 3 x QMA compatible connectors for communication 1 x QMA compatible connector for monitoring |
网口 | 1 x 10/100/1000 Base-T with M12 X-code with M12 connector 1 x 1000 Base-LX with ODC-2 connector |
标准 | IEEE 802.11b 802.11g 802.11a 802.11n |
Data rates supported | 802.11b: 1 Mbit/s, 2, 5.5, and 11 Mbit/s 802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS23 195/216.7 Mbit/s 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS23 405/450 Mbit/s |
射频功率 | 2400 to 2483.5 MHz: Max. conducted transmit power, 802.11b/g/n: 1 port: +22 dBm for all data rates 2 ports: +25 dBm for all data rates 3 ports: +27 dBm for all data rates 5150 to 5350 MHz: Max. conducted transmit power, 802.11a/n: 1 port: BPSK, QPSK and 16QAM: +22 dBm, 64QAM: +20 dBm 2 ports: BPSK, QPSK and 16QAM: +25 dBm, 64QAM: +23 dBm 3 ports: BPSK, QPSK and 16QAM: +25 dBm, 64QAM: +25 dBm 5470 to 5850 MHz: 1 port: +22 dBm for all data rate 2 port: +25 dBm for all data rates 3 port: +27 dBm for all data rates |
安全连接协议 | WPA2 (CCMP), WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, 802.11r |
Ethernet routing/ networking and VPN | Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server, Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode,Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE) |
